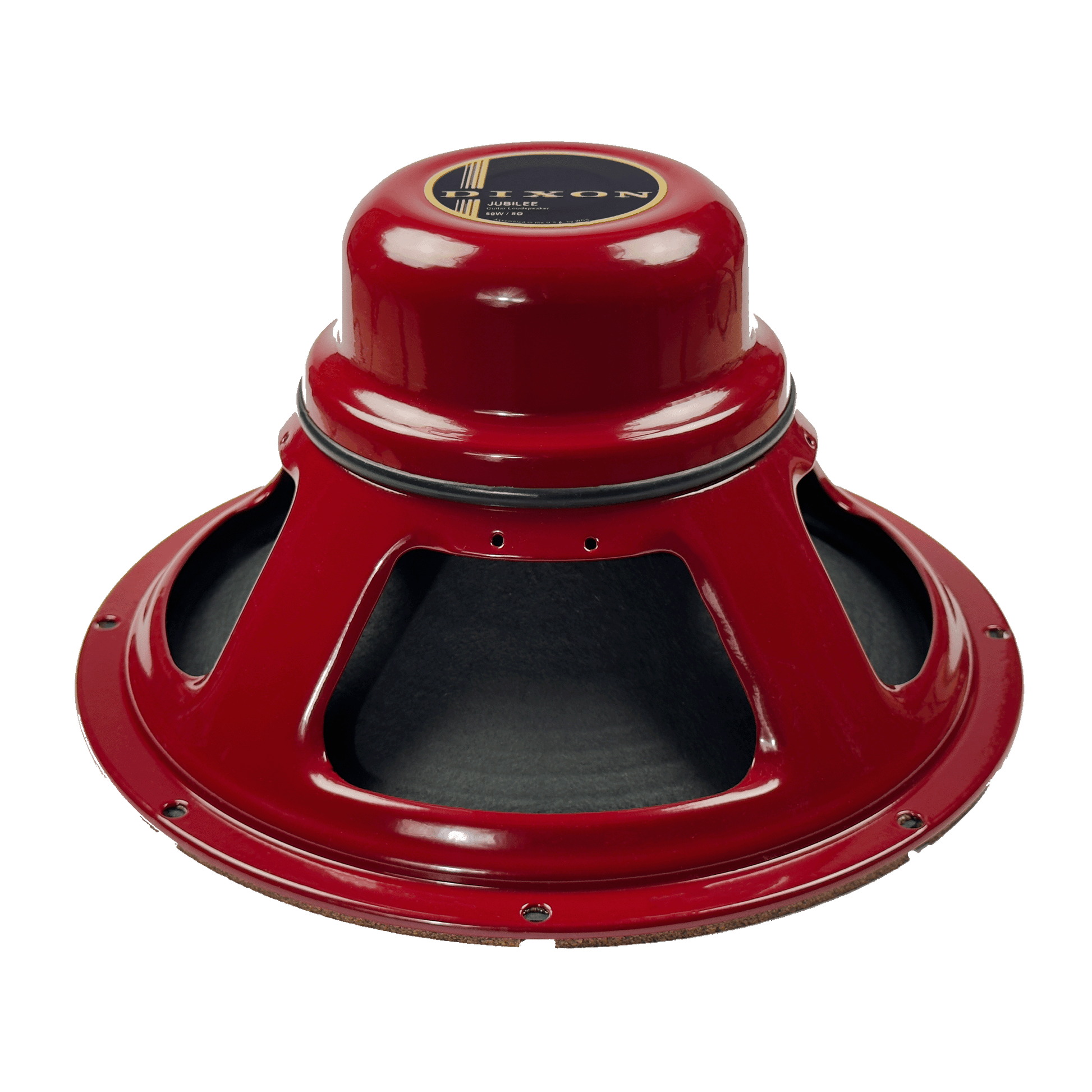

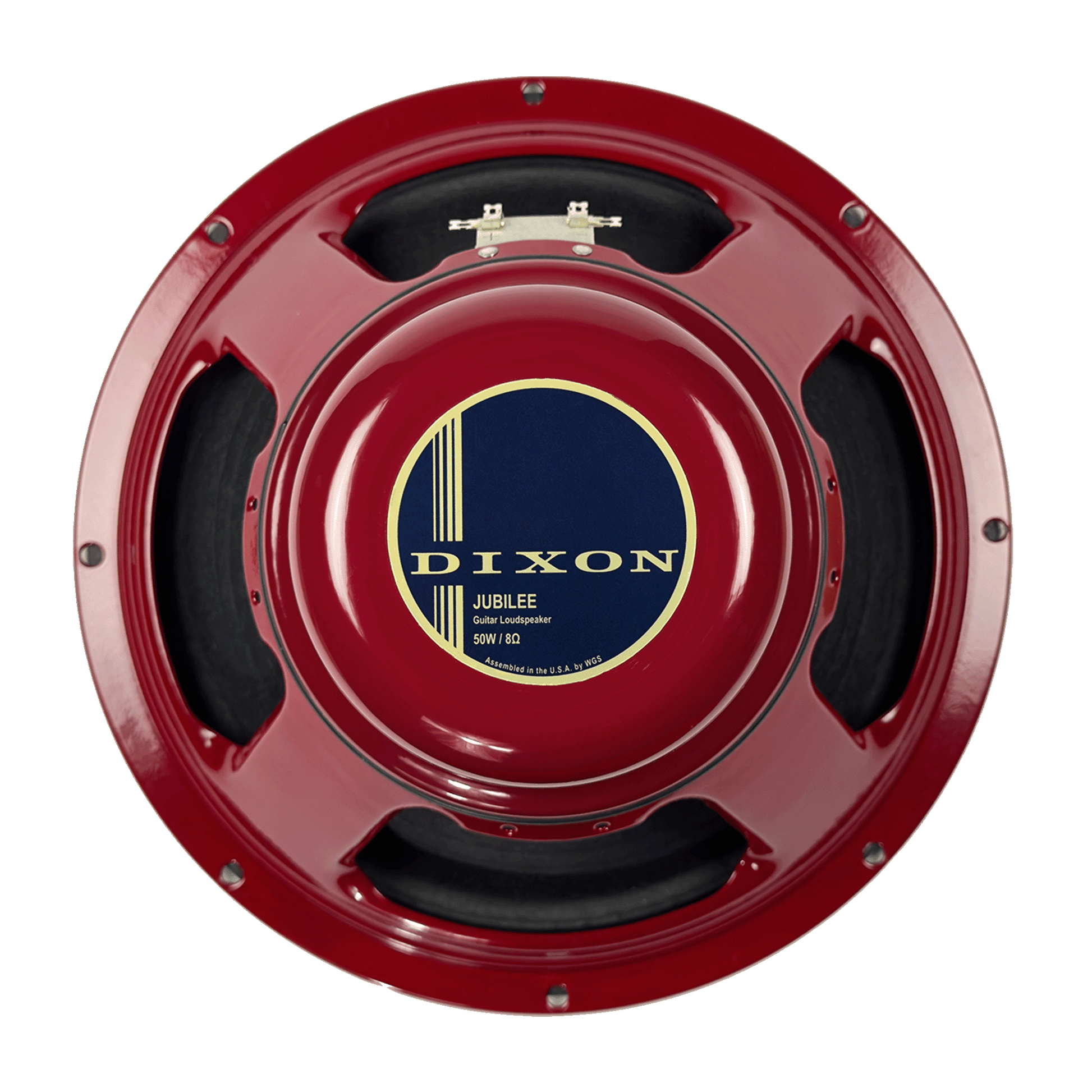

The Jubilee 50
The Jubilee 50
Featuring a large AlNico magnet, ribbed cone and special edge treatment, the Jubilee 50 captures the iconic British AlNico sound but with increased power handling, tighter lows, and a smooth upper-midrange. Players love the Jubilee’s higher power handling which preserves just the right amount of feel, compression, and note-bloom. It is the perfect drop-in replacement for British gold-style speakers if you want a smoother upper midrange and more balanced AlNico speaker that can take the heat.
Made in USA
Regular price
$295.00
Regular price
Sale price
$295.00
Unit price
/
per
Couldn't load pickup availability
Speaker Data
OVERVIEW
- 50W power rating

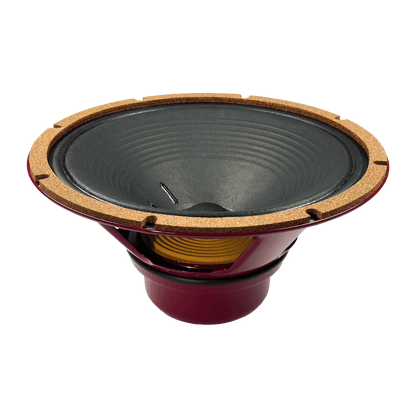

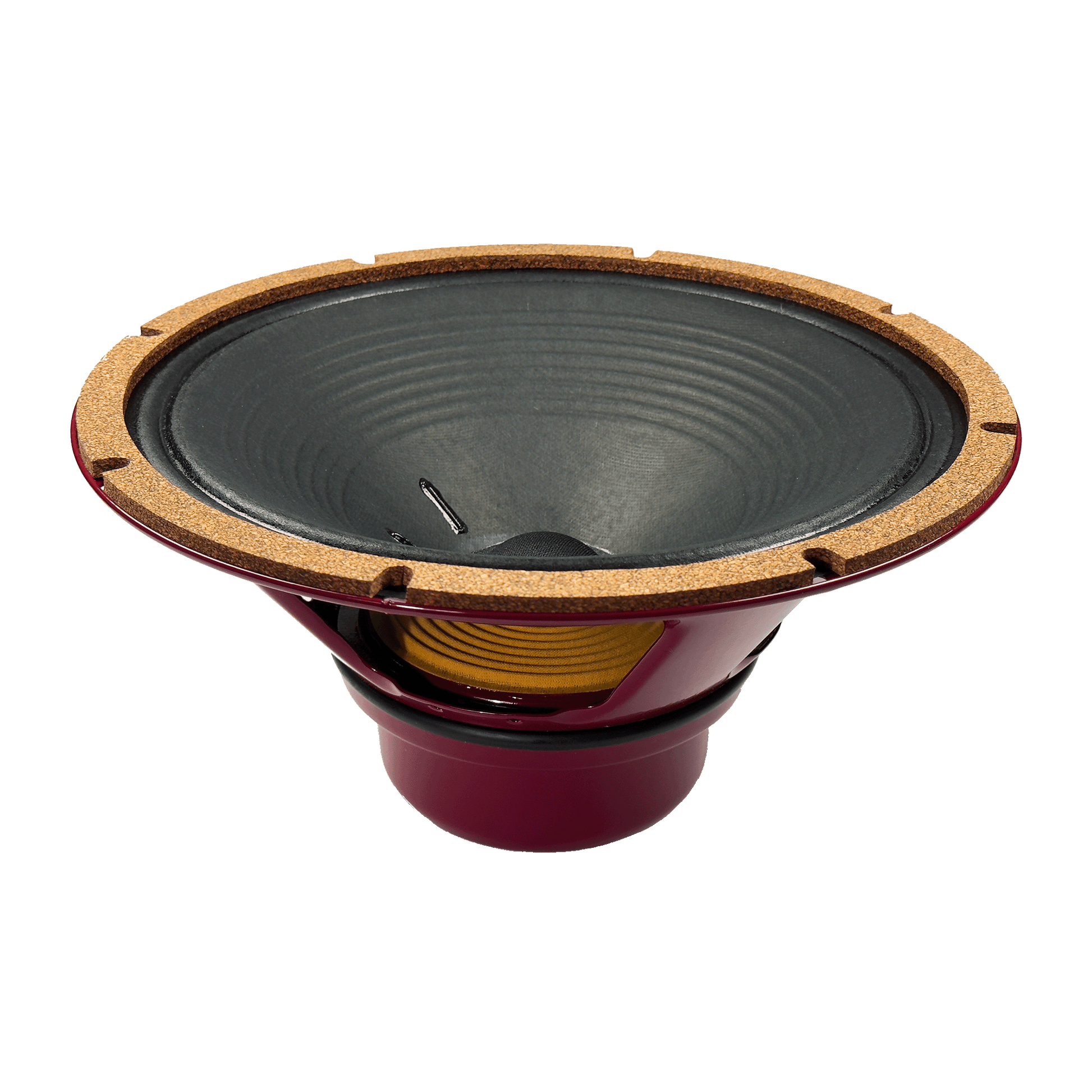

- Treated smooth cone
- Powder-coated steel frame
- Genuine cork gasket
- Unpackaged Speaker Weight: 9.4 lbs
- Handmade in the USA exclusively for DIXON by WGS
MOUNTING INFORMATION
- Rim Outer Diameter: 12.1875”
- Overall depth: 5.1875”
- Cut-out diameter: 11”
- Mounting slot dimensions: 0.25”
- Bolt Holes Diameter (8 total): 0.25”
- Mounting Hole PCD: 11.75”
THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs): 110 Hz
- DC Resistance (Re): 7.8 Ω
- Coil Inductance (Le): 0.35 mH
- Mechanical Q (Qms): 14.62
- Electromagnetic Q (Qes): 1.06
- Total Q (Qts): 0.98
- Compliance Equiv. Vol. (Vas): 13.3 cu ft
- Mech. Compliance of Susp. (Cms): 0.07 mm/N
- BL Product (BL): 12.42 T-M
- Diaphragm Mass + Airload (Mms): 29.69 grams
- Surface Area of Cone (Sd): 366.1
- Sound Pressure Level (spl): 100.1 db
