The Royal 50
The Royal 50

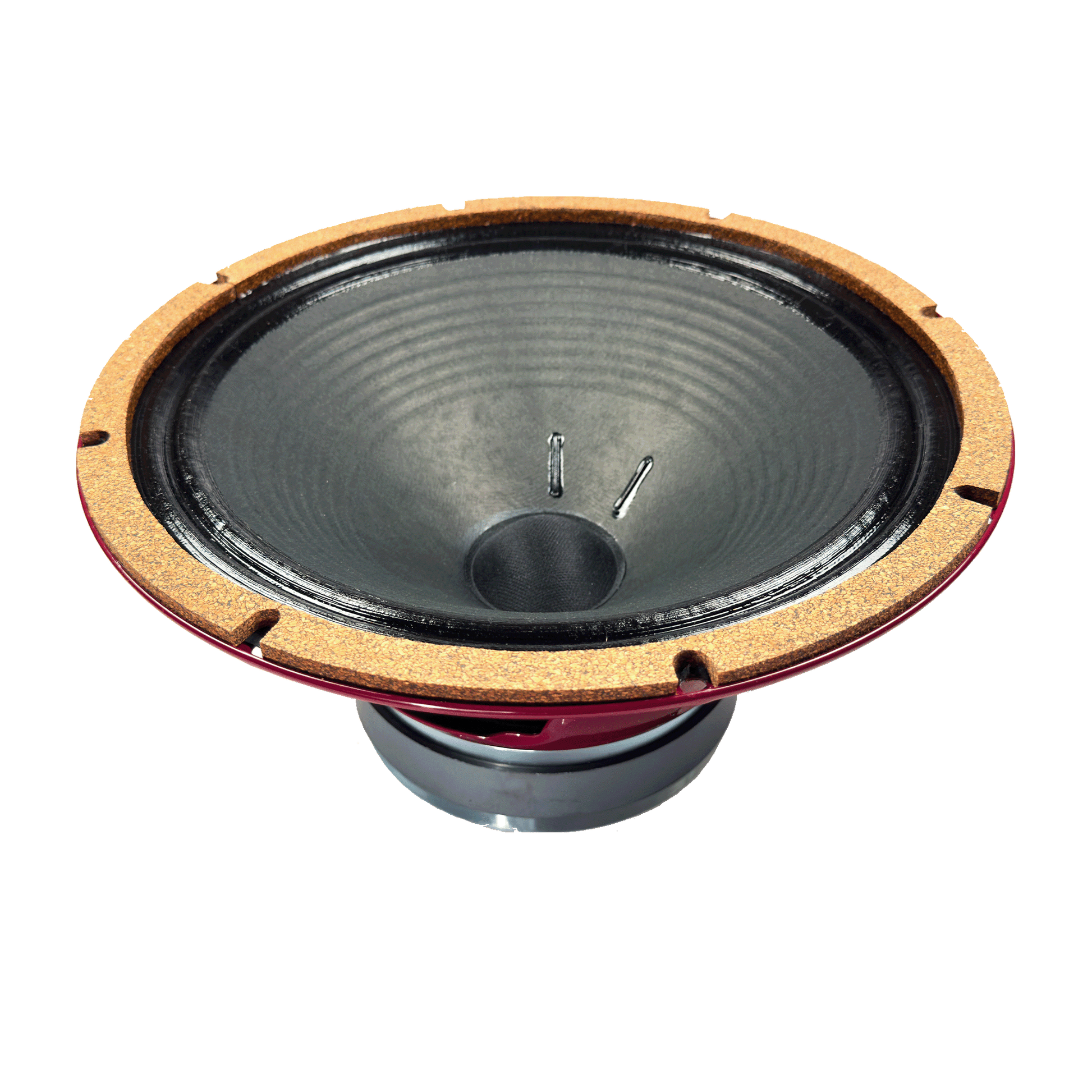

The Royal was inspired by our love of the great British guitar speaker. Featuring a large ceramic magnet, ribbed cone, ample edge treatment and a cork gasket, the Royal is an inspired all-rounder. It has a clear, open top-end, deep lows and a signature upper midrange that is never harsh. Beautiful, rich cleans transition seamlessly to creamy breakup when pushed. The Royal is a very efficient and forward-sounding speaker for it’s type, but still has a touch of compression making it a classic all-rounder for players looking for a super versatile British style speaker.
Made in USA
Regular price
$155.00
Regular price
Sale price
$155.00
Unit price
/
per
Couldn't load pickup availability
Speaker Data
OVERVIEW
- 50W power rating
- Treated cone
- Powder-coated steel frame
- Genuine cork gasket
- Unpackaged Speaker Weight: 10.3 lbs
- Handmade in the USA exclusively for DIXON by WGS
MOUNTING INFORMATION
- Rim Outer Diameter: 12.1875”
- Overall depth: 5.1875”
- Cut-out diameter: 11”
- Mounting slot dimensions: 0.25”
- Bolt Holes Diameter (8 total): 0.25”
- Mounting Hole PCD: 11.75”
THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs): 102 Hz
- DC Resistance (Re): 6.7 Ohm
- Coil Inductance (Le): 8.0 mH
- Mechanical Q (Qms): 8.613
- Electromagnetic Q (Qes): 0.7235
- Total Q (Qts): 0.6674
- Compliance Equiv. Vol. (Vas): 1.384 cu ft
- Mech. Compliance of Susp. (Cms): 87.6 mm/N
- BL Product (BL): 13.76 T-M
- Diaphragm Mass Inc. Airload (Mms): 27.8476 grams
- Surface Area of Cone (Sd): 558.645
- Sound Pressure Level (spl): 99.42 db
