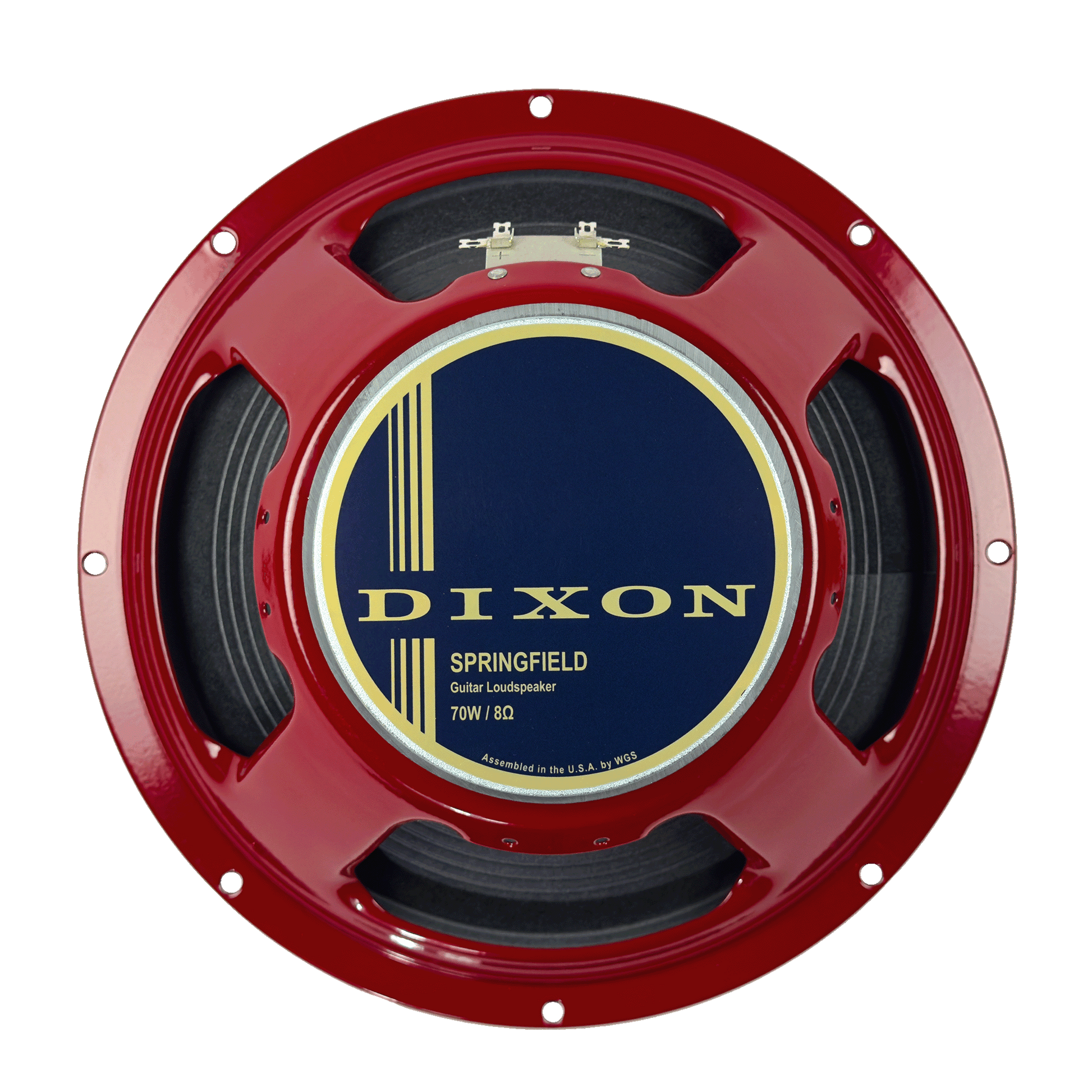

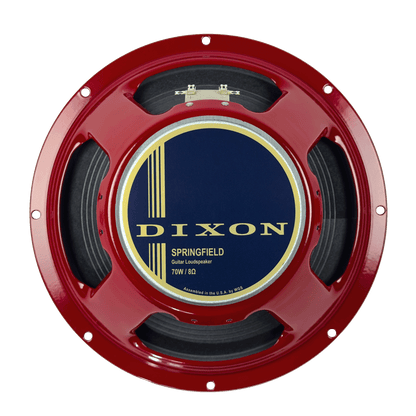

The Springfield 70
The Springfield 70
The Springfield 70 is a drop-in replacement for the C12N that is equally at home in high-powered twin twelve combos or single twelve tweeds. It reveals complex harmonics across the tonal with minimal compression and very tight and punchy low response. Players rave about how the Springfield brings their neck pickups forward and generally opens up the amplifier. It’s the perfect upgrade for American black and silver panel amps and an ideal way to take your mushy tweed to the next level with more presence, clarity and headroom.
Made in USA
Regular price
$155.00
Regular price
Sale price
$155.00
Unit price
/
per
Couldn't load pickup availability
Speaker Data
OVERVIEW
- 70W power rating
- Ribbed cone
- Powder-coated steel frame
- Genuine cork gasket
- Unpackaged Speaker Weight: 7.8 lbs
- Handmade in the USA exclusively for DIXON by WGS
MOUNTING INFORMATION
- Rim Outer Diameter: 12.25”
- Overall Depth: 5.0625”
- Cut-out Mount Diameter: 11”
- Bolt Holes Diameter (8 total): 0.25”
- Mounting Hole PCD: 11.75”
THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs): 135 Hz
- DC Resistance (Re): 7.7 Ω
- Coil Inductance (Le): 0.3 mH
- Mechanical Q (Qms): 18.3
- Electromagnetic Q (Qes): 1.43
- Total Q (Qts): 1.3
- Compliance Equiv. Vol. (Vas): 8.76 cu ft
- Mech. Compliance of Susp. (Cms): 0.05 mm/N
- BL Product (BL): 11.8 T-M
- Diaphragm Mass + Airload (Mms): 30.6 grams
- Surface Area Cone (Sd): 366
- Sound Pressure Level (spl): 99.5 db
